Max. transmission distance is 500 meters. | ||
Industrial design, high reliability. | ||

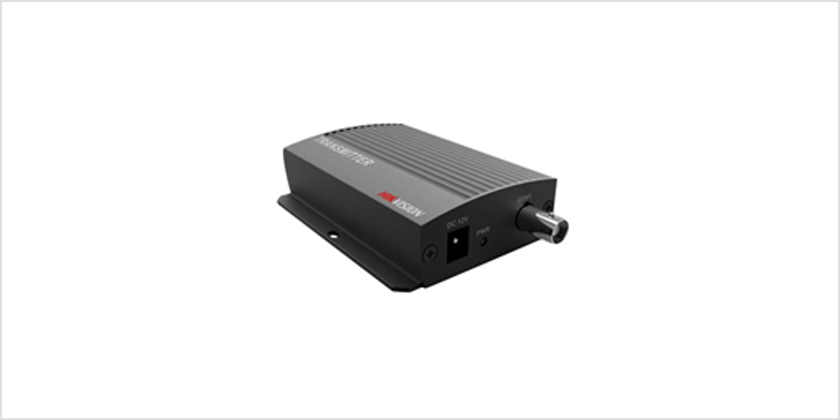

Ethernet Over Coax | ||
Supported camera types: | | | Support HDTVI input: 1080p/25Hz, 1080p/30Hz, 720P/25Hz, 720P/30Hz, Support AHD input: 720P/25Hz, 720P/30Hz, support CVBS input |
Input: | | | 1 RJ45,1 BNC |
Output: | | | 1 BNC |
Consumption: | | | DS-1H05-T<5W |
Working Humidity: | | | 10 ~ 90% |
Working Temperature: | | | -10°C ~ 55°C |
Power: | | | DC12V |
Dimension: | | | 80×27×96 mm |
